Ceramic insulators for ignitors are essential components in providing electrical insulation and thermal protection in different applications. Their strength, durability, and resistance to heat and electric offer make them ideal for ignitor systems used in furnaces, boilers, and industrial heaters. There are various types of ceramic insulators for ignitors, including:
Porcelain Ignitor
A porcelain ignitor uses a mixture of clay, feldspar, quartz, and other minerals that are fired at a high temperature to create a durable and heat-resistant ignitor. Since it is an excellent insulation material with good thermal resistance and durability, it is mainly used in agricultural equipment, industrial burners, and gas ignition systems.

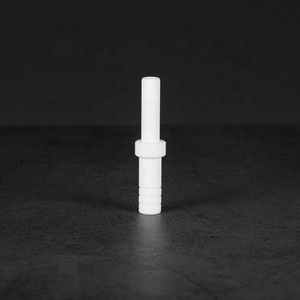

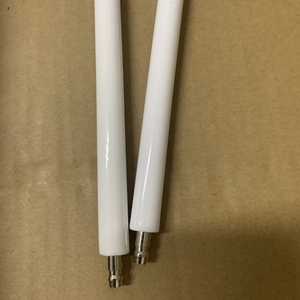

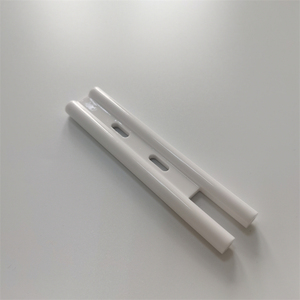

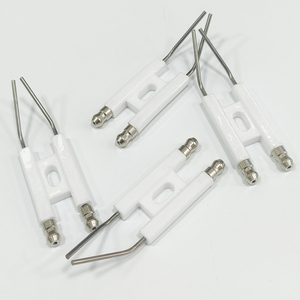

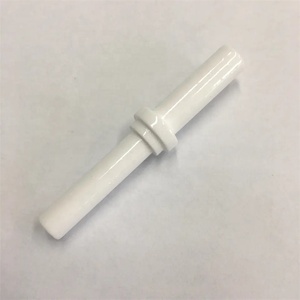

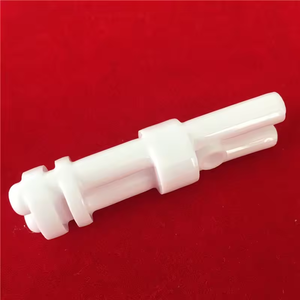

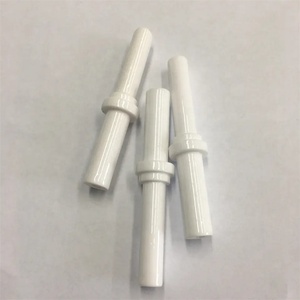

Alumina Ceramic Ignitor
Manufactured mainly from alumina oxide, an alumina ceramic ignitor has high thermal stability, bad electric conductivity, and excellent corrosion resistance. Oftentimes, it is used in high-temperature ignition applications, such as plasma cutters and industrial furnaces. Its capacity to maintain structural integrity at elevated temperatures makes it suitable for extreme environments.
Steatite Ignitor
A naturally occurring ceramic material called steatite is composed mainly of talc, quartz, and clay. It is highly heat-resistant and has good dielectric properties, making it ideal for ignitors that need to operate and maintain their insulation properties under high temperatures. It is mainly used in gas burners and ignition electrodes.
Zirconia Ceramic Ignitor
Engineered from zirconium oxide, zirconia ceramic ignitors have exceptional resistance to thermal shock and high temperatures. Often used in applications requiring ignitors to withstand rapid temperature changes without cracking, which includes industrial burners and high-heat kilns. Its ability to endure thermal shocks makes it invaluable in processes with fluctuating temperatures.

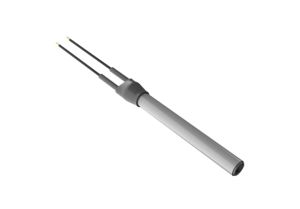

Silicon Nitride Ignitor
Astrong and lightweight silicon nitride ignitor is highly resistant to thermal shock and oxidation. This kind of ignitor is manufactured for applications that are needed to operate efficiently in extreme temperatures and oxidative environments. Mostly used in advanced industrial heating systems and turbocharger ignitors.
In order to select a ceramic insulator for an ignitor, one must consider a couple of key factors, which include the operating conditions, desired performance characteristics, and material properties.
Temperature Resistance
Ensure that the ceramic material has the capacity to withstand the maximum temperatures the ignitor will be exposed to. Materials like alumina and zirconia offer excellent resistance to high temperatures, thus making them ideal for high-temperature applications.
Thermal Shock Resistance
For applications that involve rapid heating or cooling, resistance to thermal shock is important. Steatite and silicon nitride ceramics are effective at resisting cracking due to sudden temperature changes.
Mechanical Strength
Consider the mechanical stresses that may occur during operation. High strength and toughness are needed for materials like alumina or silicon nitride to avoid deformation or failure under stress.
Electrical Insulation
Evaluate the electrical insulation properties of the ceramic material. A good ignitor must have excellent dielectric strength to prevent unwanted electrical discharge. Materials such as porcelain and steatite have great insulating properties.
Chemical Resistance
If the application involves corrosive substances, selecting a chemically resistant ceramic is essential. Alumina and zirconia offer great resistance to chemical corrosion, thus ensuring the long-term durability of the insulator in an adverse environment.
Manufacturing and Dimensional Precision
Ceramic materials are selected based on their ease of fabrication into the required shapes and sizes. Accurate dimensional control is important for the proper functioning of the insulator in the ignitor system. A poorly fitted insulator can lead to malfunction or decreased performance.
Cost and Availability
Lastly, one should consider the material's cost and its availability. While some advanced ceramics offer superior performance, they can be expensive to produce. Weigh the budget constraints against the performance requirements to arrive at a practical decision.
The specifications and maintenance of a ceramic insulator for the ignitor are crucial for its long-term performance and reliability. Some of these key specifications include:
Dielectric strength
This is a measure of the insulating capability of the ceramic material. It is usually expressed in volts per millimeter (V/mm) or in kilovolts per millimeter (kV/mm). High dielectric strength is preferred for ignitors, as this ensures the ignitor will effectively resist electrical breakdown.
Thermal conductivity
This refers to the ability of the ceramic material to transfer heat. It is usually measured in watts per meter per Kelvin (W/m·K). Lower thermal conductivity is ideal for ignitors to allow better heat confinement within the appliance. Higher values are, however, favorable for spark plugs.
Operating temperature range
The range of temperatures within which the insulator should ideally perform without undergoing physical or chemical changes. The range should be compatible with the operating conditions of the ignitor system. Common ranges for ceramic insulators commonly used in ignitors are between 800°C and 1400°C.
Mechanical strength
This is an important factor in determining how much stress or strain a material can withstand before it deforms or breaks. Insulator materials are required to be rigid and have high strength to avoid cracking or chipping when in a high-temperature environment.
Chemical resistance
Chemical resistance is the ability of a ceramic material to resist degradation from corrosive agents. Ignitors may be exposed to chemical environments, hence the selected ceramic should be resistant to acids, alkalis, and other corrosive agents to maintain its integrity and functionality.
Specific heat capacity
Specific heat capacity is the quantity of heat required to raise the material’s temperature by one degree Celsius. Measured in joules per kilogram per Kelvin (J/kg·K), it helps to evaluate how efficiently the insulator can absorb and store heat.
These types of insulators are widely used in industrial furnaces, gas burners, boilers, heat treatment equipment, and even in spark plugs. They are important for ignition because they help contain heat and create a spark within an internal combustion engine.
The insulator provides excellent electrical insulation, is heat-resistant, is very durable, provides support for the igniter, and ensures that the igniter produces a strong, focused spark for efficient ignition.
Ceramic insulators are highly utilized for their exceptional dielectric strength and thermal resistance, but there are also metal insulators made of steel or nickel. Polymer and glass fiber insulators, however, may not withstand extremely high temperatures. Therefore, ceramic is mostly preferred for both electrical and thermal insulation.
Yes, ceramic insulators can be customized in terms of size, shape, and material composition to meet specific requirements. Such factors may include operating temperature, electrical insulation, and thermal shock. Various industries may require these customizations for optimal performance.
